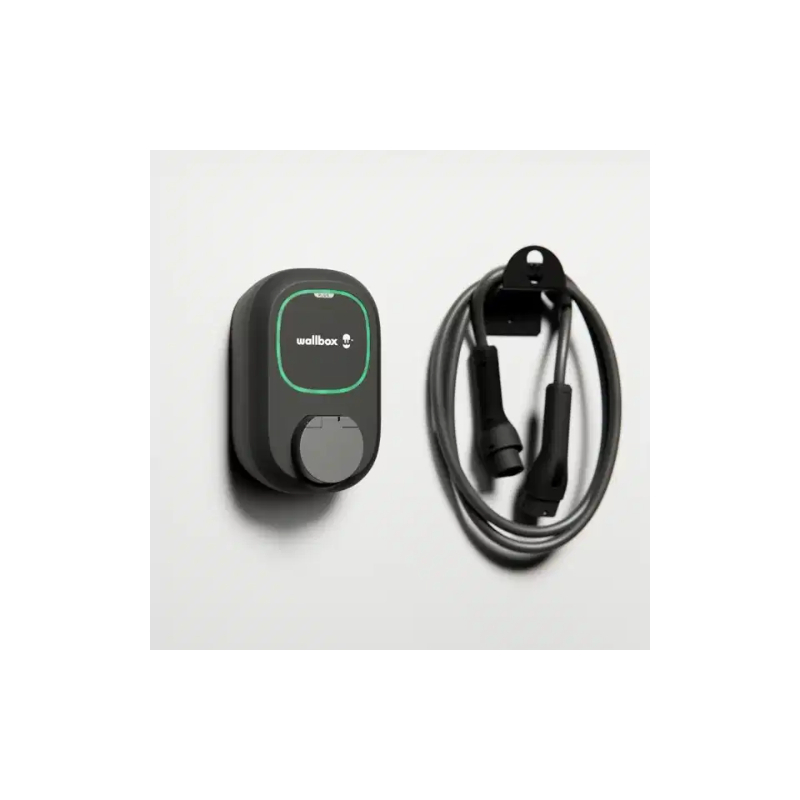

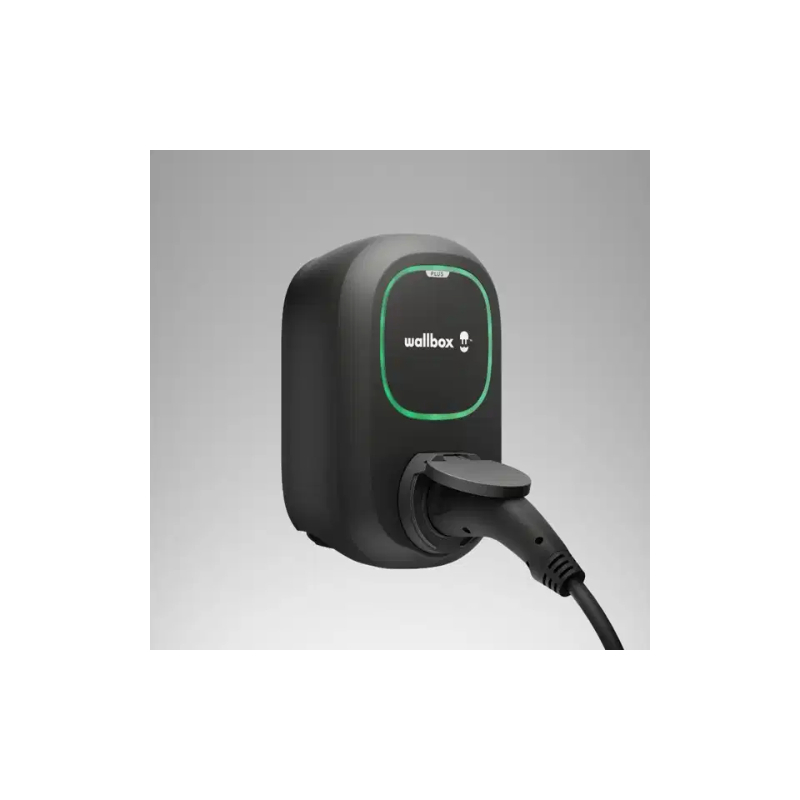

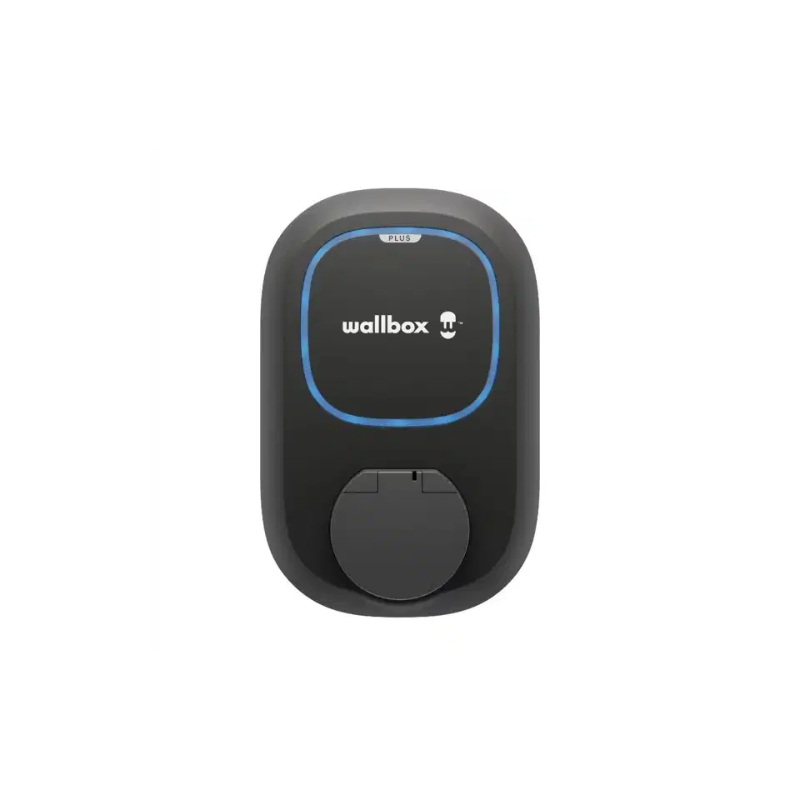

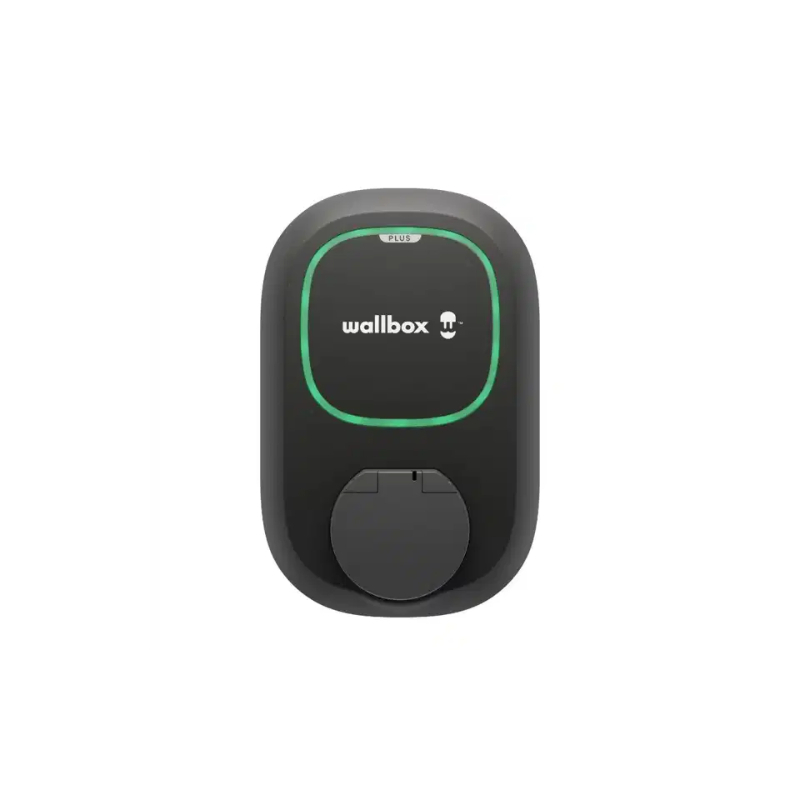

The WALLBOX Pulsar Max 22kW is a practical and intelligent charging system for electric vehicles and plug-in hybrids. It connects to the myWallbox charging management platform via Wi-Fi or Bluetooth and combines powerful charging performance with a compact, discreet design suitable for private garages or shared parking areas

Key Features

• Charging Power: 22kW, 3 x 32A, three-phase
• Charging Mode: Mode 3 according to IEC 61851-1
• Connectivity: Wi-Fi and Bluetooth
• Control: myWallbox App with off-peak charging schedules
• Design: Compact and discreet, with a premium matte, scratch-resistant finish
• Protection Rating: IP55 / IK10 for indoor and outdoor use
• Safety: Integrated PEN fault detection and Residual Current Detection (DC 6m)
• Connector: Type 2
• Cable: Socket
• Voice Control: Compatible with Amazon Alexa and Google Assistant devices
• Charging Status: Integrated status lights
• Smart Features: Artificial intelligence supported by myWallbox
• Smart Charge Points Regulations: Compliant
• User Interface: Identification and user interface via myWallbox App
• Colour: Black
• Dimensions: 198 x 201 x 99 mm (without cable)
• Package Dimensions: 41 x 41 x 17 cm
• Weight: 1.30 kg (without cable)

Ideal For

• Charging electric vehicles and plug-in hybrids
• Private garages
• Shared parking areas
• Indoor and outdoor installations
• Users looking for connected and intelligent EV charging management
