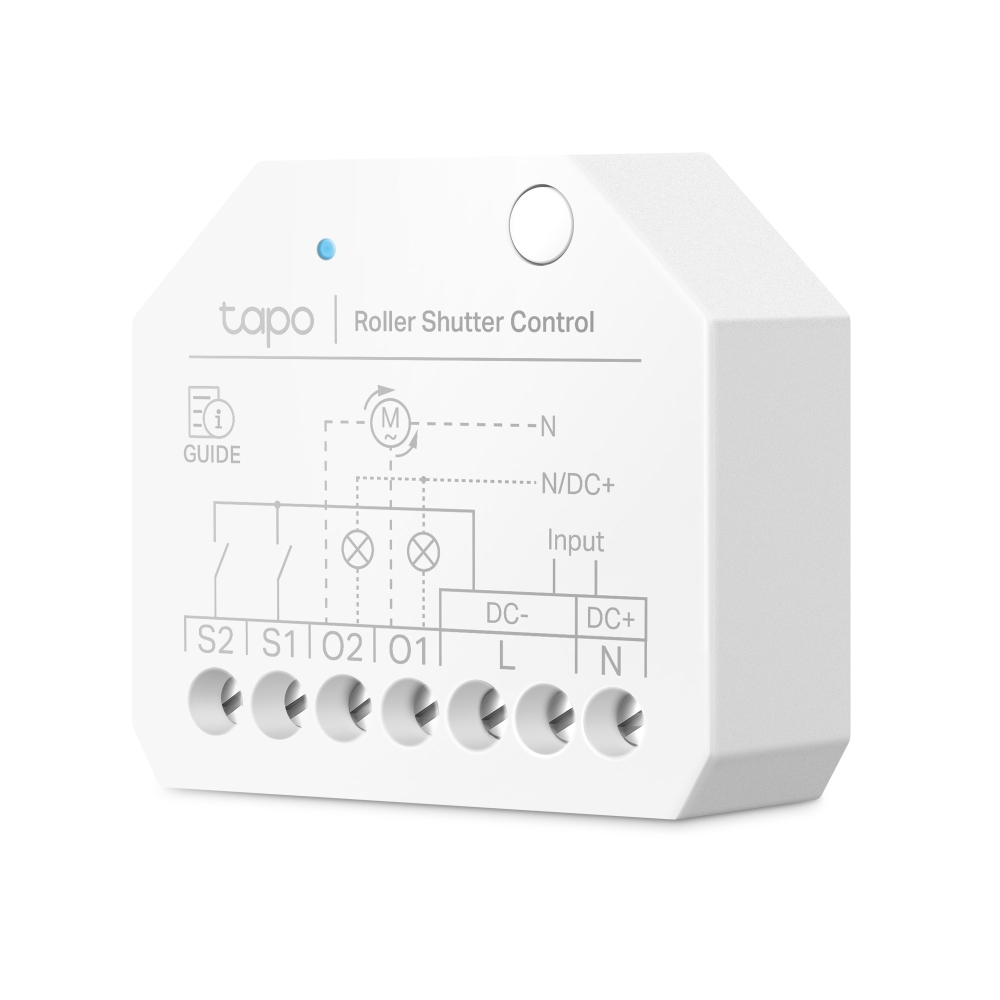

General Description

• Smart switch module designed for home automation and multi-device control

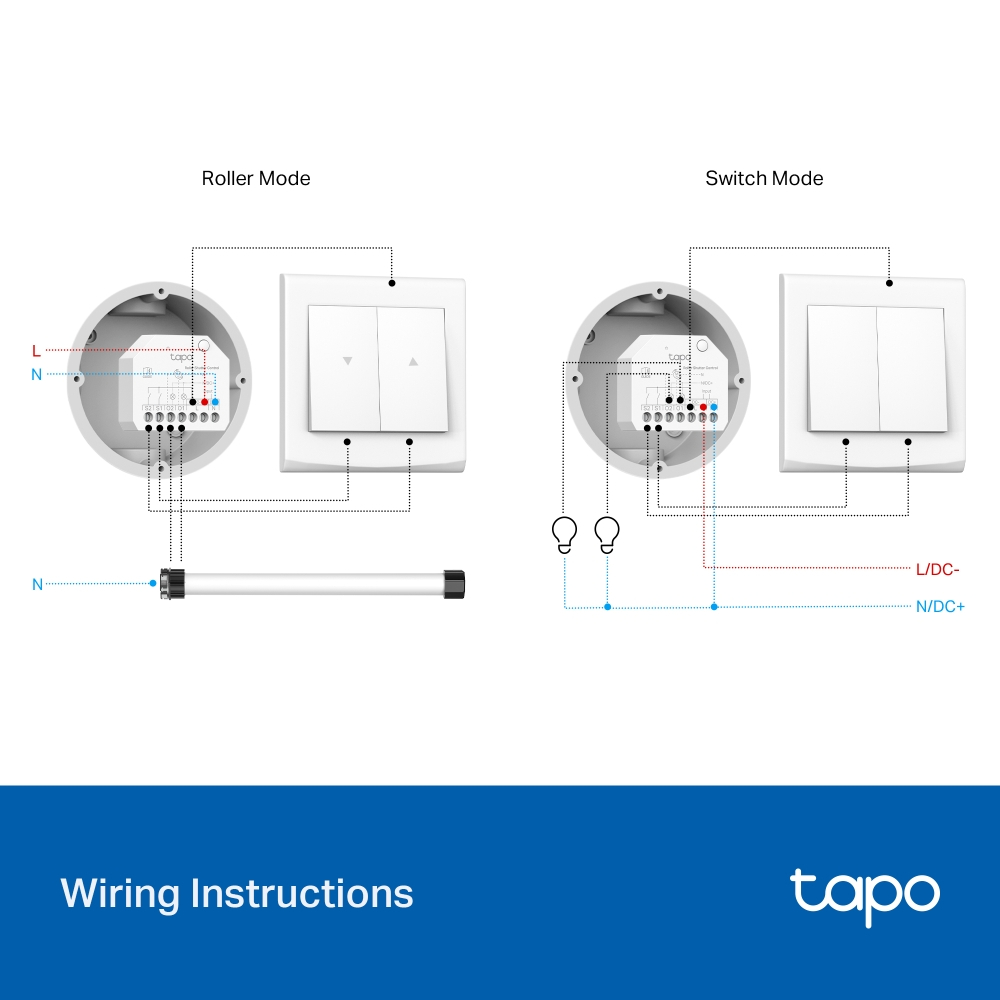

• Supports both roller shutter operation (interlock mode) and independent control of two devices (switch mode)
• Matter certified for seamless interoperability across major smart-home platforms

Specifications

• Wireless connectivity: 802.11b/g/n, 2.4 GHz Wi-Fi and Bluetooth
• Input voltage: 100–250V~, 50/60Hz
• Load capacity: 6A resistive, 1.5A motor, 150W LED
• DC input options: 24–30V 6A / 30–48V 1.5A / 48–60V 1A

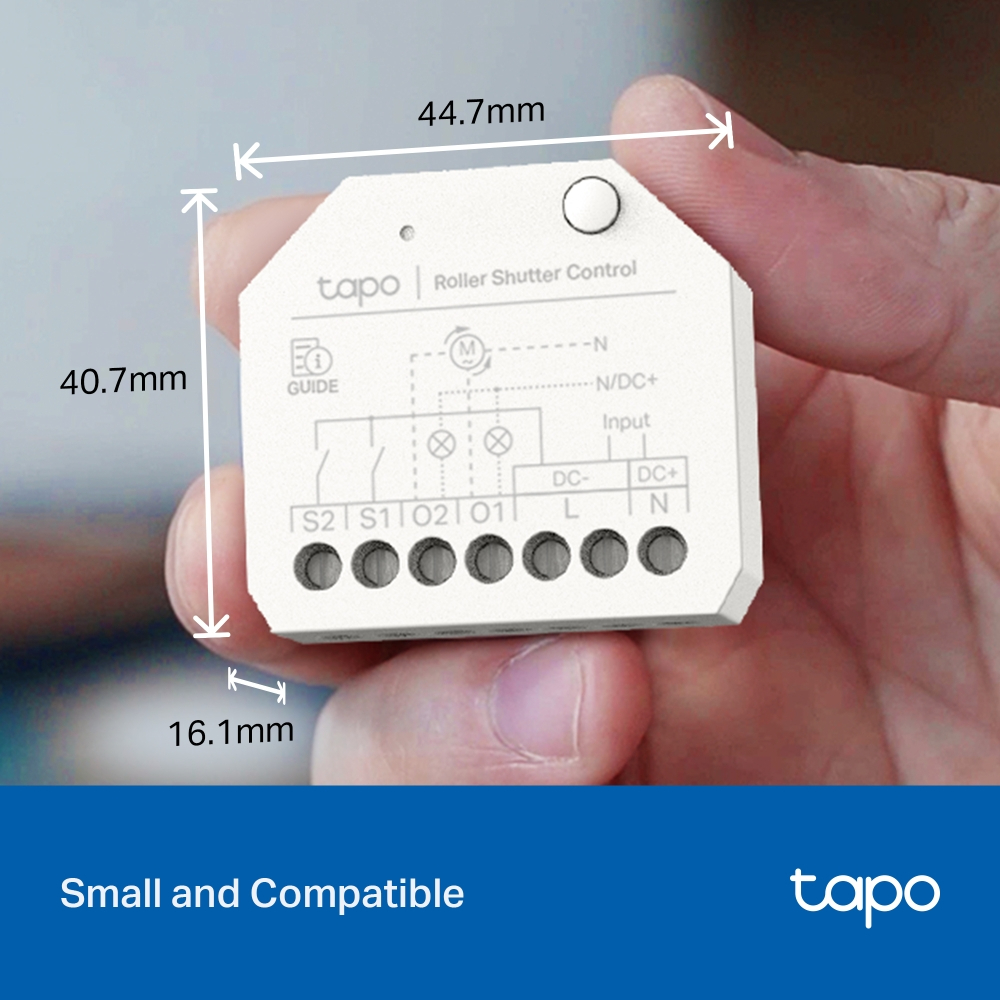

• Dimensions: 44.7 × 40.7 × 16.1 mm
• Neutral wire required

Key Features

• Roller shutter control with interlock mode
• Control of two devices separately in switch mode
• Matter certified and works with Apple Home, Alexa, Google Assistant, and Samsung SmartThings
• Energy monitoring (not supported with DC input)

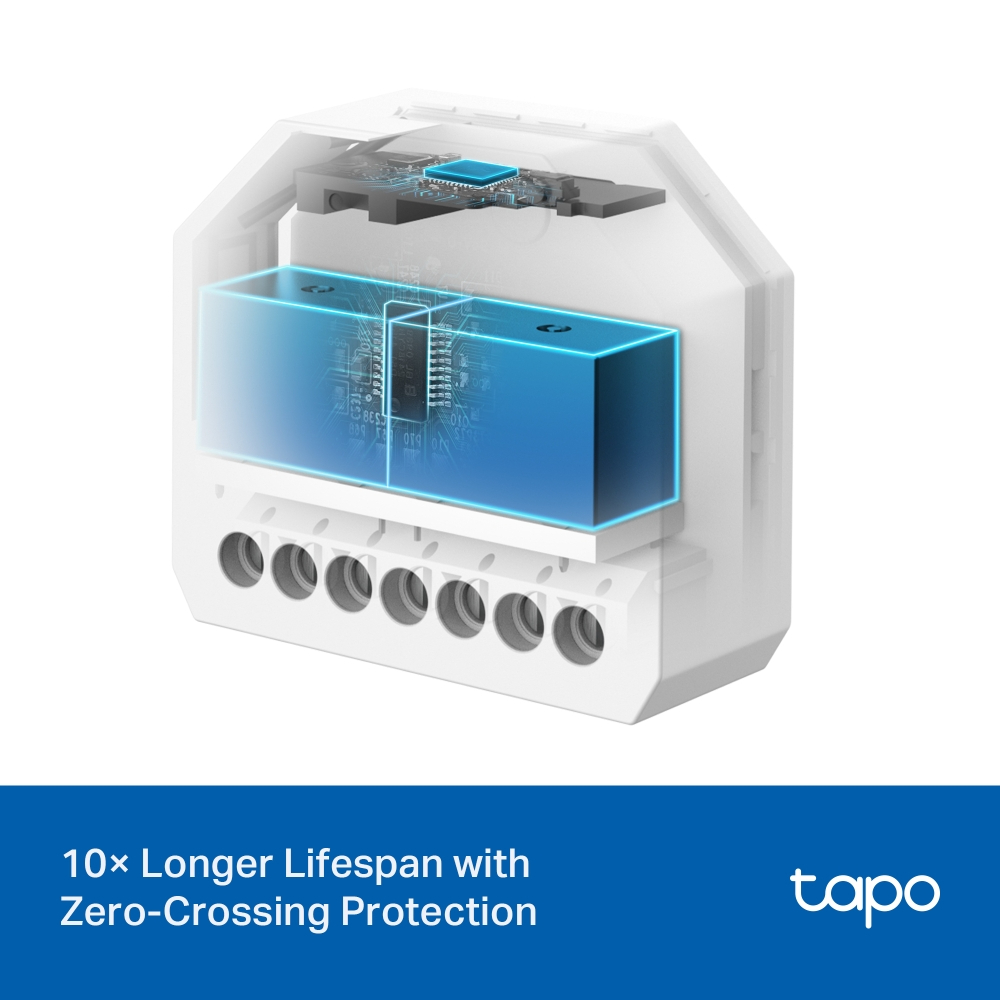

• Zero-crossing protection for improved safety and device longevity
• Bluetooth direct control for quick local operation
• TSS (TP-Link Simple Setup) for simplified installation
• Voice control, remote control, scheduling, and timer functions
