Precision cuts—guided to perfection.

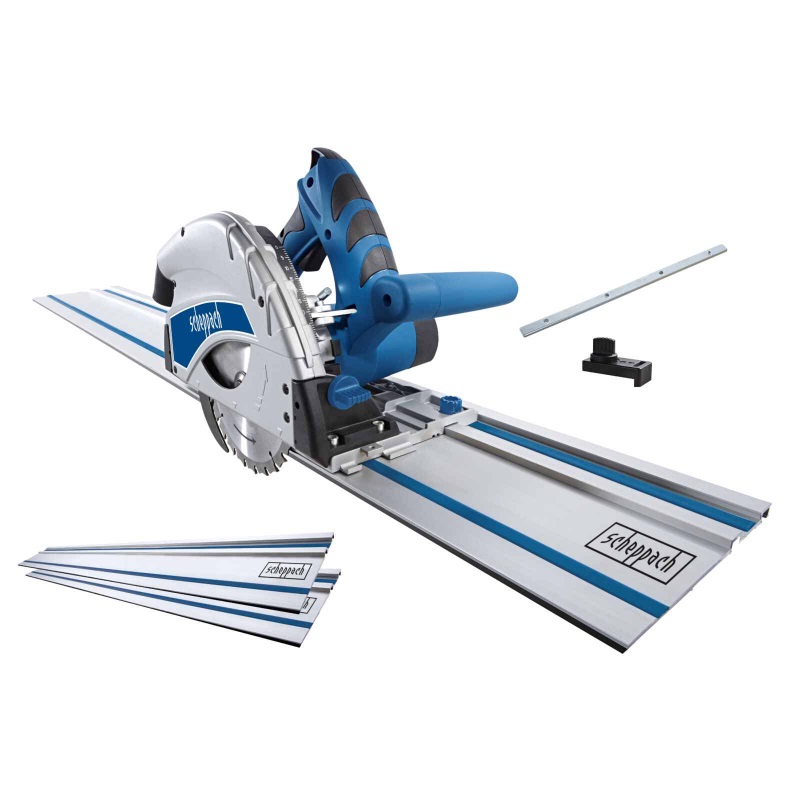

The Scheppach PL55 Plunge Saw Set delivers professional-grade cutting with a powerful 1200W motor and dual guide rails. Ideal for wood, laminate, and sheet materials, it offers smooth plunge cuts, bevel angles up to 45°, and close-to-wall trimming with minimal breakout.

• Model: PL55
• Motor Power: 1200W
• Blade Diameter: Ø160 mm
• Blade Bore: Ø20 mm
• Speed: 5500 rpm
• Cutting Depth:
• 90°: up to 55 mm
• 45°: up to 41 mm
• Bevel Angle: 0° to 45°
• Minimum Side Distance: 16 mm (ideal for shadow gaps)
• Guide Rails:
• 2 × 700 mm aluminium rails
• Total length: 1400 mm
• Includes rail connector and tilt protection
• Design Features:
• Parallel plunge mechanism
• Enclosed blade guard with dust extraction port (Ø35/38 mm)
• Suitable for hardwood, MDF, chipboard, and coated panels
• Extras:
• 24T carbide-tipped blade
• Tool-free depth adjustment
• Compact dimensions: 340 × 260 × 235 mm
• Weight: ~7.4 kg
• Voltage: 230–240V
