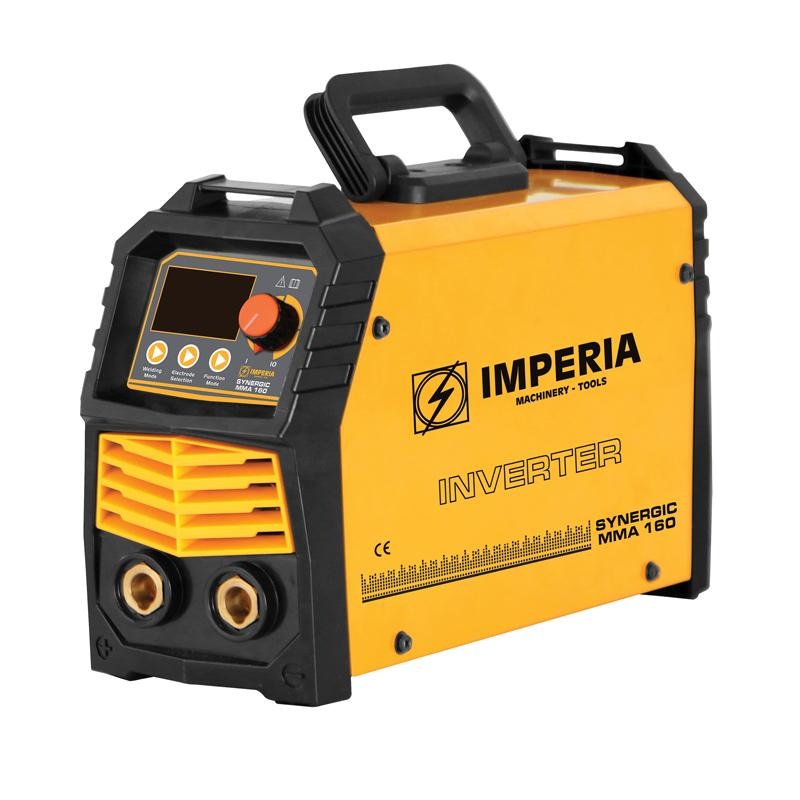

Synergic MMA 160 by Imperia is suitable for both amateurs and professionals with a medium workload.

It features synergic welding technology with a rich base of welding parameters for easy and quick selection of the appropriate settings. It is equipped with anti-stick, hot-start, arc-force, lift-TIG, and VRD. It has the capability to weld rutile, basic, inox, and cellulose electrodes.

• Type: Synergic MMA 160
• Synergic: Yes
• Input Power: 1ph-230V-50Hz
• Open Circuit Voltage (V): 81
• Maximum Input Current (A) / Power (kVA) @ 230V (MMA): 31.2 / 7.1
• Output Current Range (A) (MMA): 20-160
• Duty Cycle at Maximum Current @ 40° (%) (MMA): 25
• Welding Current at Full Cycle (A) (MMA): 80
• Maximum Input Current (A) / Power (kVA) @ 230V (TIG): 20.7 / 4.7
• Output Current Range (A) (TIG): 20-160
• Duty Cycle at Maximum Current @ 40° (%) (TIG): 25
• Welding Current at Full Cycle (A) (TIG): 80
• Efficiency (%): 85
• Power Factor – cosφ: 0.7
• Insulation Class: H
• Protection Class – IP: IP21S
• Power Supply from Generator: Yes, with AVR use
• VRD: On/Off
• Hot Start Ignition: Adjustable
• Anti Stick: Yes
• Arc-Force: Adjustable
• Lift TIG: Yes
• Reset: No
• Electrode Φ max. (mm): 4
• Wireless: No
• Plugs: 50
• Certification: 60974-1
• Weight (kg): 3.8
• Packaging Weight (kg): 5.8
• Packaging Dimensions LxWxH (mm): 390x160x350
• Warranty: 12 months
